What Is A Vacuum Brake Booster. The booster uses vacuum from the engine or from a dedicated vacuum pump to allow atmospheric pressure to assist with pushing a piston that applies hydraulic pressure to the brakes. Most modern vehicles are equipped with a vacuum brake booster to give you a power assist during braking.
Vacuum Brake Booster - How It Works! (Animation) - Youtube from www.youtube.com
The brake booster design allows it to hold enough vacuum to let you engage the brakes once or twice without the engine running. The vacuum line is usually connected to the upper intake near the back or either side of the intake. The most common type of brake booster uses engine vacuum.
This System Is Used In A Vacuum Booster Or Power Brake Booster.
This component is common on a variety of consumer cars, trucks and suvs. A vacuum brake booster provides power assist to the brake system. the vacuum booster is a metal canister that contains a clever valve and a diaphragm.
This Helps You Stop The Vehicle In Case Of Engine Failure.
They use fluid pressure created by the power steering pump. It uses a vacuum to balance the high fluid pressure in the braking system of a vehicle, facilitating effective braking. How much vacuum does a brake booster need?
Most Gasoline Engine Vehicles Use The Vacuum Boost Design, As Vacuum Is Readily Available At The Intake Manifold.
The vacuum booster is a kind of brake booster, used to assist the brake. The brake booster is a device that requires to operate the vacuum. The master cylinder pumps brake fluid and converts that force into hydraulic pressure in the brake lines, engaging the brake caliper at each wheel to slow the car.
As You Push The Brake Pedal, A Shaft Moves Through The Booster On Its Way To Pushing The Piston.
Many vehicles employ a vacuum brake booster in order to provide additional power to the braking system. However, hydraulic boosters are also available. The brake booster is one of the safety device used in the automobiles and it is a necessary part of the braking system.
The Piston Is Subjected To Vacuum At Both Side In Brake Released Position.

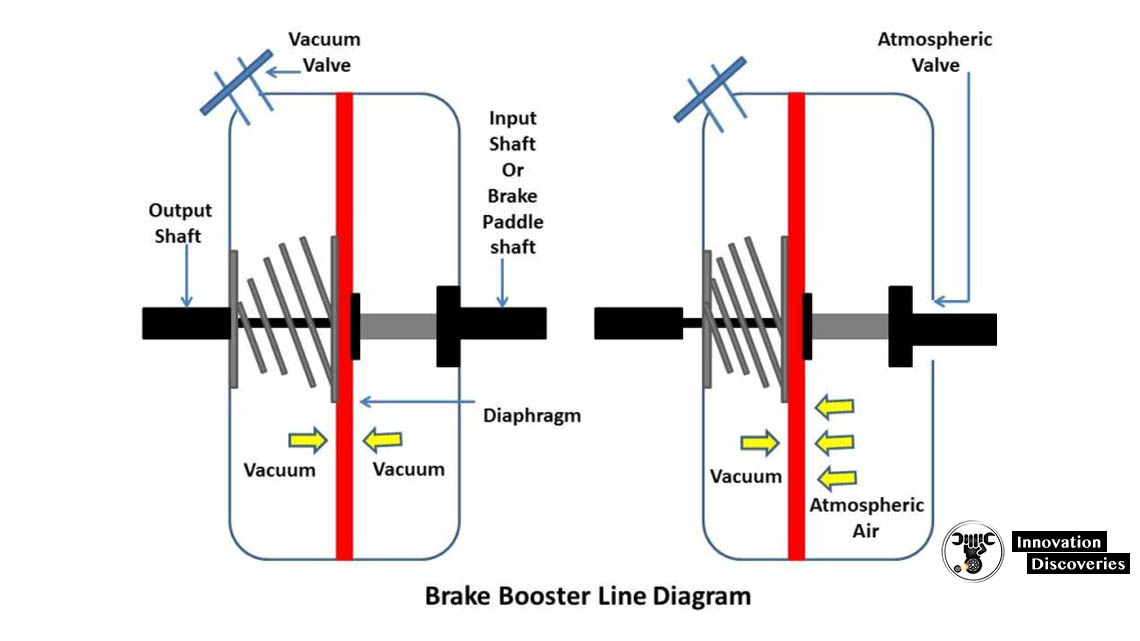

Thus both side of the booster’s diaphragm are suspend in a vacuum. The brake booster design allows it to hold enough vacuum to let you engage the brakes once or twice without the engine running. Vacuum booster have following parts arranged as shown in diagram.
